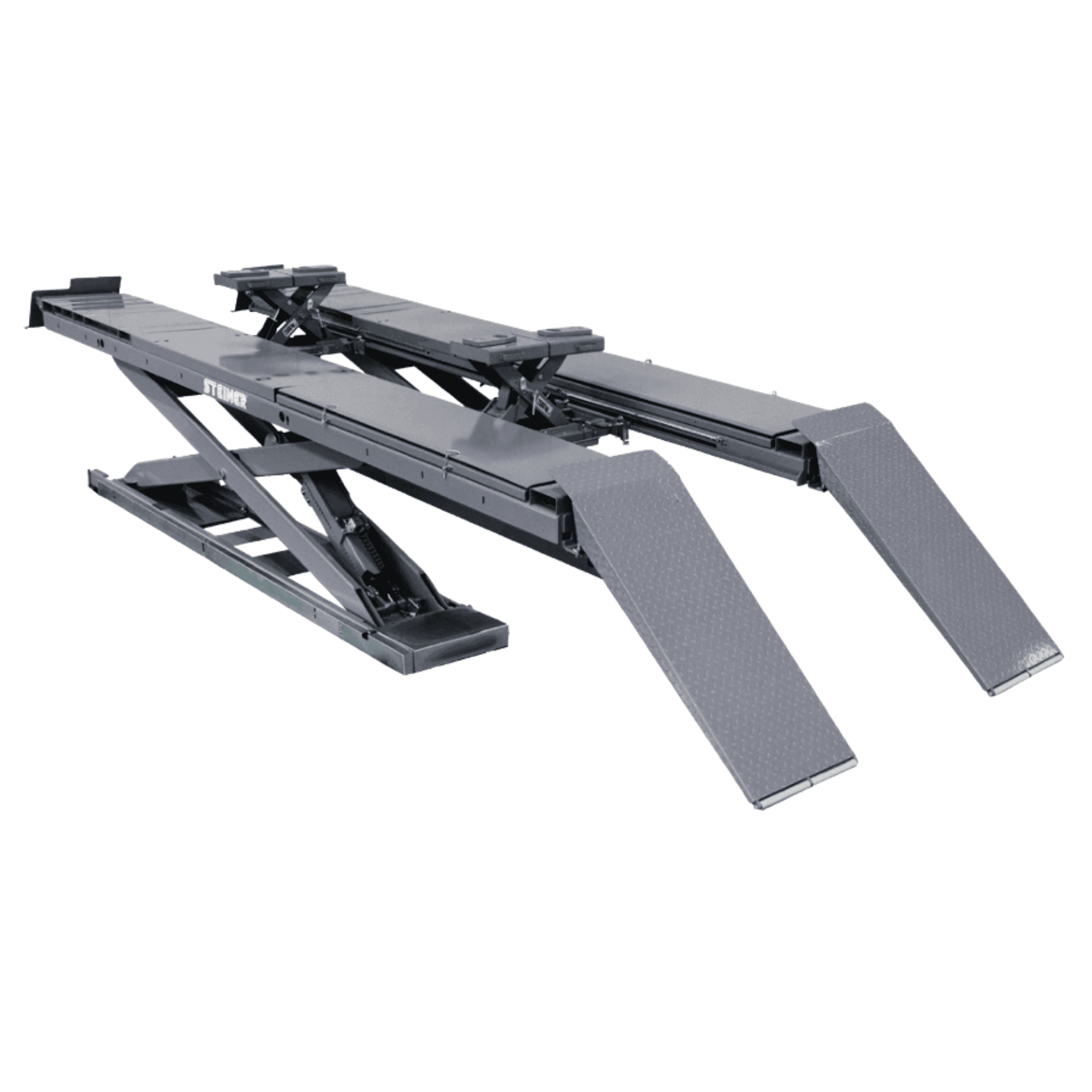

The Steiner Professional 6 Tonne Alignment Scissor Lift (LT60SAPRO) is a low-profile alignment solution designed for heavy-duty workshop performance. It features a foldable crossbar for unrestricted underbody access, electronic synchronisation for automatic platform levelling, and integrated hydraulic rolling jacks with pneumatic slip plates for efficient wheel service and alignment work.

Available in both above-ground and in-ground configurations, it seamlessly adapts to suit a variety of workshop layouts.

Applications

• Wheel alignment bays and tyre service shops
• Dealerships and fleet service facilities
• Workshops handling performance, SUV, and commercial vehicles
• Inspection, brake testing, and underbody repair stations

Key Features

• Lifting capacity: 6,000 kg (main lift) / 3,000 kg (jack)
• Electronic synchronisation system maintains platform level automatically
• Powerful balancing system compensates for left/right weight differences over 1 tonne
• Pneumatic rear slip plates (auto/manual) for alignment precision
• Hydraulic rolling jacks included for wheel service and underbody work
• LCD control panel displays functions and diagnostics
• Automatic LED work lighting turns on during use for clear visibility during operation
• Optional LED status display for system feedback
• Foldable crossbeam (optional) allows underbody access when required
• Extendable platforms (+300 mm front and rear) for longer vehicles
• Available in above-ground or in-ground setup for flexible installation

Specifications

• Lifting capacity: Main 6,000 kg / Jack 3,000 kg
• Max lifting height: Main 2,090 mm / Jack 340–350 mm
• Min lifting height: Main 290 mm / Jack 20–25 mm
• Lifting time: Main 40–60 sec / Jack 5–15 sec
• Lowering time: Main 35–55 sec / Jack 5–15 sec
• Platform length: 5,200 mm (extendable to 6,100 mm)
• Overall dimensions: Length 6,500 mm / Width 2,210 mm
• Power & motor: 3 phase | 2 HP | 4 pole | 415 V | 50 Hz X 2
• Net weight: Approx. 2,800 kg
• Country of manufacture: Korea

Additional Benefits

• Faster workflow: Crossbar-free layout and automatic levelling reduce setup time between jobs.
• Improved safety: Dual control systems and automatic locking features protect technicians during lift and descent.
• Enhanced efficiency: Built-in rolling jacks and pneumatic slip plates eliminate the need for separate lifting equipment.
• Better visibility: Integrated LED lighting provides clear under-vehicle illumination for inspection and adjustment work.
• Adapts to your space: Versatile in-ground or above-ground configuration means minimal workshop modifications and quicker installation.
