Steiner 6.5 Tonne 4 Post Service Hoist also available in 8t

Hoists, Four Post

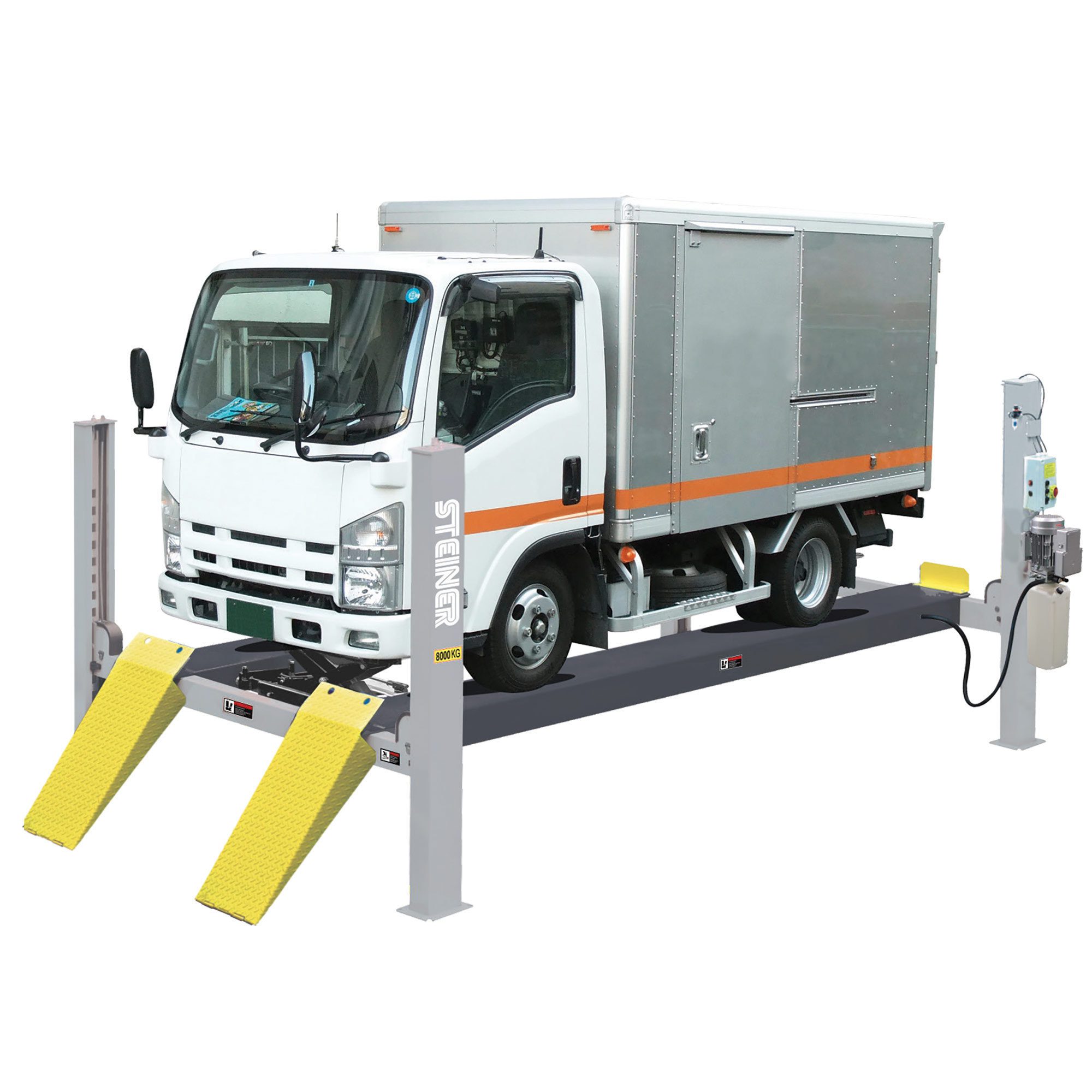

Steiner 6.5 Tonne 4 Post Service Hoist also available in 8t

SKU: LT465

This heavy-duty 6.5-tonne four-post alignment lift is designed for professional automotive workshops and high-volume service centres. Featuring integrated slip plates, adjustable turnplate positions, and dual safety systems, it delivers reliable lifting and precise wheel alignment for a wide range of vehicle wheelbases.

Applications

Professional automotive workshops
High-volume service centres
Wheel alignment and vehicle servicing applications

Key Features

6,500kg Lifting Capacity: Designed for commercial vehicle servicing and wheel alignment.
Electric-Air Control System: Features mechanical self-locking with air-driven safety release for reliable operation.
Dual Safety Device: Automatically engages a secondary locking system for added operator protection.
Adjustable Turnplate Positions: Accommodates a wide range of vehicle wheelbases.
Skid-Proof Diamond Platforms: Provides secure vehicle positioning during servicing and alignment.

Specifications

Specification	Details
Model	414A
Lifting Capacity	6.5 tonne (14,000 lbs)
Lifting Time	76 seconds
Overall Length (Including Ramps)	6528mm
Overall Length (Without Ramps)	5500mm
Overall Width	3324mm
Width Between Columns	2946mm
Lifting Height	1915mm
Minimum Height	250mm
Runway Width	508mm
Width Between Platforms	Max. 1385mm
Four-Wheel Alignment Range	2350-4310mm
Gross Weight	1550kg (3,417 lbs)
Motor	4.0HP
