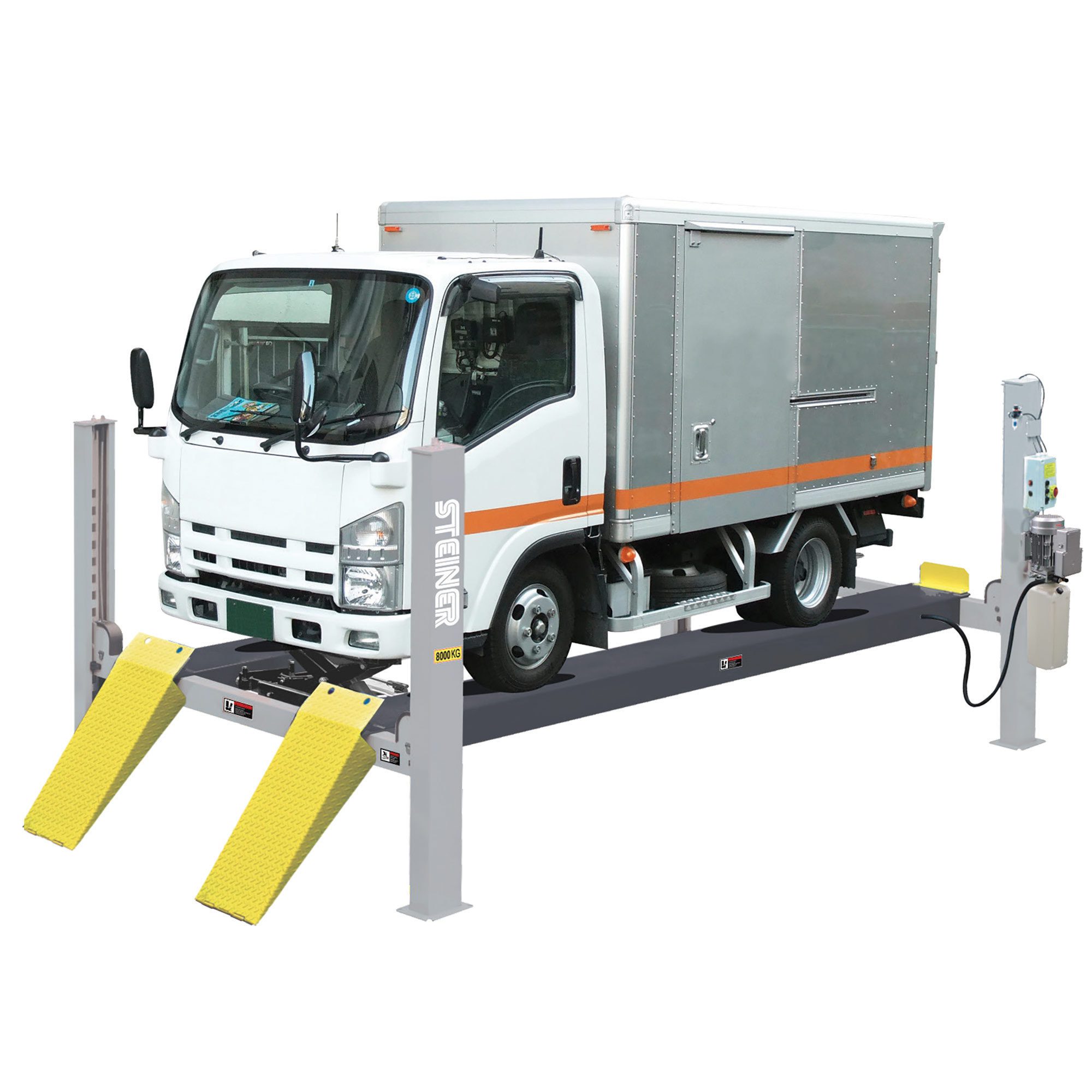

Steiner 6.5 Tonne 4 Post Alignment Hoist

Hoists, Four Post

Steiner 6.5 Tonne 4 Post Alignment Hoist

SKU: LT465A

The Steiner 6.5 Tonne 4 Post Alignment Hoist (LT465A) features a long 6224mm runway designed for workshops and service centres accommodating vehicles with longer wheelbases. Its adjustable turntable positions allow the hoist to easily handle varying wheelbases, while the cable-driven electric hydraulic power system and electric-air controls provide straightforward operation.

The LT465A is equipped with a mechanical self-lock featuring an air-driven safety release, backed by a dual safety device. The controls can also be mounted on either side of the hoist to give workshops greater layout flexibility.

Applications

Workshops requiring a strong four post lift
Service centres working with vehicles with longer wheelbases
Vehicle alignment applications
Workshops requiring adjustable turntable positions for different wheelbases

Key Features

6500kg lifting capacity
6224mm runway length, excluding ramp length
Adjustable turntable positions for different wheelbases
Cable-driven electric hydraulic power system
Electric-air controls
Mechanical self-lock with air-driven safety release
Dual safety device acts as a backup to the mechanical locks
Controls can be mounted to either side of the hoist
Non-slip diamond platforms
Optional 3500kg manual hydraulic rolling jack
Optional platform extension kit adds 660mm to the platform length

Optional Accessories

Rolling jack – manual hydraulic type, 3500kg
Air line kit for rolling-jack-equipped hoists
Platform extension kit – adds 660mm to platform length
Adjustable blocks for use with the platform extension kit
Turnplates – set of two, one set required per hoist

Ideal for:

Medium Volume

Own it from:

$13.63 a day

Great service, quick and efficient workmanship. They serviced five hoists in less than one day and repaired one hoist. Would recommend their services.

Jeremy Haysham
I have been dealing with Hoist & Garage Equipment for 10 years now, and their dedication to delivering customer service is top-notch and I look forward to the next 10 years

Warren Penwarden
Technician worked well & efficiently within our workshop and our technicians were able to work on available hoists so there there was no hold up in our day to day running of the workshop.

Auto Super Shoppe Onekawa
These guys really know what they are doing , had no issues with any of their work , communication is great and are always here when they say they will be

Brad
have been using hoist and garage for years now,serviced all our workshop hoists.great job as always.recommend

Mathew Donachie
always a great team to deal with. Recommended for knowledge, experience, flexibility & price.

Cambridge Auto Electric
showed up when booked , serviced our hoist once again, good job done

Greerton Panel
Great service, prompt efficient and friendly.

Paul & Joy Quilter
the hoist was serviced as usual on time & the safety data sheet was provided.

paul EKDAHL
Always do a great job, would never use anyone else.

Wayne Zaloum

No-Risk 100 Day 100% Satisfaction Promise

Support & training included

Fast Installation

3 Year Warranty

Technical Info

Specification	Details
Lifting capacity	6500kg
Lifting time	76 sec
Overall length, including ramps	7265mm
Overall length, without ramps	6224mm
Overall width	3324mm
Width between posts	2946mm
Maximum lifting height	1865mm
Overall height	2185mm
Minimum height	200mm
Maximum underneath height	1695mm
Drive-through clearance	2592mm
Width between runways	1194–1385mm max.
Outside edge of runways	2210–2401mm max.
Motor	4.0HP
Gross weight	1345kg

Documents

Finance Options

We partner with FinanceNow and eLeasing for easy ownership options.

Rental

Key advantages of rental are:

Conserves capital and cash
Access to higher standard equipment that would be too expensive to buy outright
Fixed monthly payments for easy cashflow forecasting
Easy to upgrade or replace with little extra cost
Payments are usually fully tax deductible

Asset Finance

Key Advantages of Asset Finance are:

You own the equipment from start of contract
Terms up to 60 months
Often no deposit needed
Competitive rates
Tax deductibility on GST almost immediately and interest and depreciation thereafter

Blackfern Co-op Members

Blackfern also has a range of interest free extended payment terms. Quote your member number when you talk to us, and we can explain your options.

Delivery

Vehicle Hoists
We use Mainstream as our freight carrier. From dispatch you can typically expect your Hoist within the following timeframes:

Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days

Our Carriers deliver the equipment on a standard curtain-sider truck. If you don’t have a forklift or don’t have access to one, please speak with our team as we will have to arrange a Hi-ab Truck. This may incur an extra charge.
